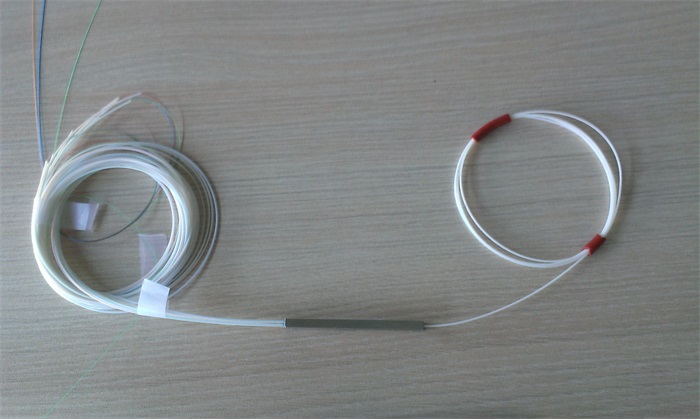

PLC Splitter

PLC  Splitter Performance Specifications:

1 x N

Type

1×2

1×4

1×8

1×16

1×32

1×64

Insertion Loss, dB

Premium Grade

≤ 3.8

≤ 7.2

≤ 10.5

≤ 13.5

≤ 16.5

≤ 20.5

Standard Grade

≤ 4.2

≤ 7.4

≤ 10.7

≤ 13.7

≤ 17.0

≤ 21.5

Uniformity, dB

≤ 0.6

≤ 0.8

≤ 1.0

≤ 1.2

≤ 1.5

≤ 2.0

Polarization Dependent Loss, dB

≤ 0.2

≤ 0.3

≤ 0.4

Operating Wavelength, nm

1260～1650

Stainless Steel Tube ( Bare ribbon )

Package Size ( mm )

40 × 4 × 4

40  ×4 × 4

60 × 7 × 4

60 × 12 × 4

Stainless Steel Tube ( 900um loose tube )

60 × 7 × 4

60 × 12 × 4

80 × 20 × 6

100 × 40 × 6

ABS Box ( 2.0/3.0mm loose tube )

100 × 80 × 10

120×80× 8

120×80×18

141×115×18

Directivity, dB

≥ 55

Optical Input Return Loss, dB

≥ 55

Storage Temperature,℃

-40 ～ 85

Operating Temperature,℃

-40 ～ 85

PLC Ordering Information :

Port

1x2

Wavelength

1310nm

1x4

1490nm

1x8

1550nm

1x16

Fiber

G657A

1x32

1x64

Connector

SC

2x2

SC/APC

2x4

LC

2x8

LC/APC

2x16

E2000

2x32

E2000/APC

2x64

MU

Input cable

250um bare fiber

FC

900um loose tube

FC/APC

2.0mm loose tube

ST

3.0mm loose tube

Output cable

Ribbon bare fiber

900um loose tube

2.0mm loose tube

3.0mm loose tube

Fanout
